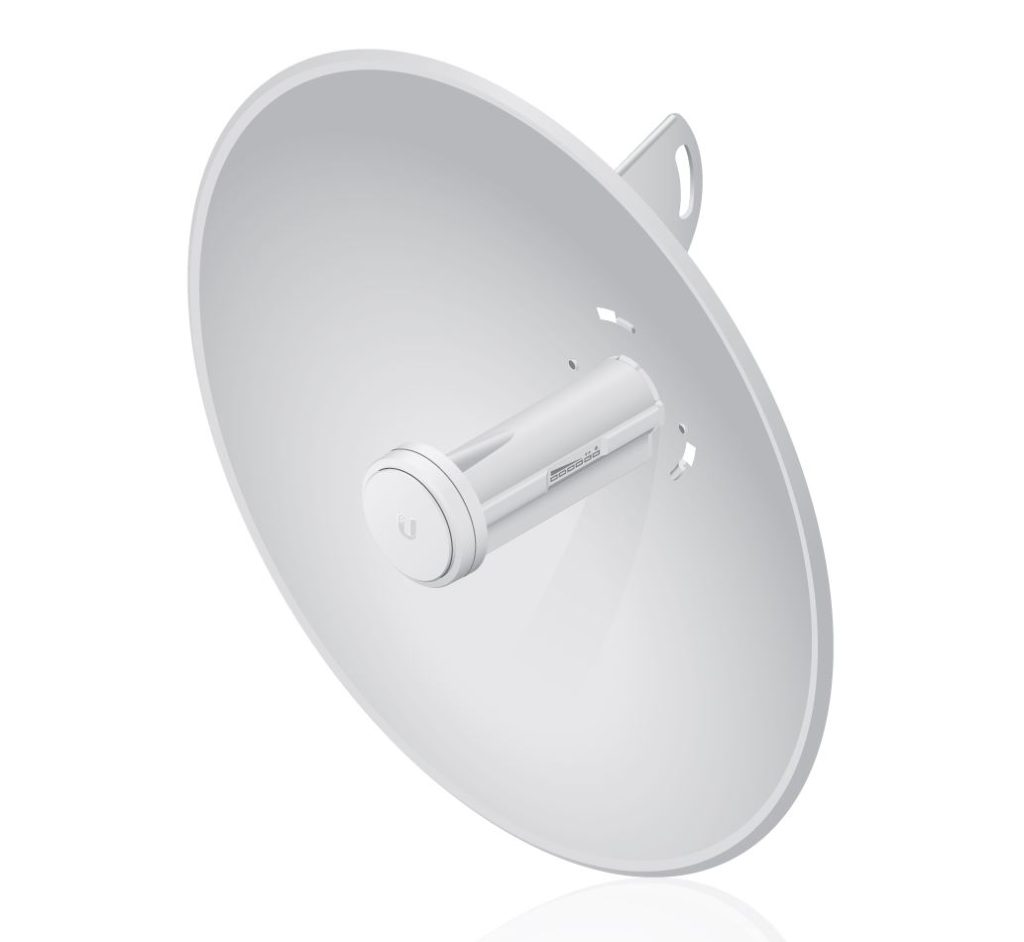

| دستهبندی | اکتیو شبکه، رادیو وایرلس، یوبیکیو تی رادیو وایرلس |
|---|---|
| برند | یو بی کیوتی |
| وضعیت کارکرد | نو |
| سرعت پورت شبکه | 10/100 |
| PoE | دارد |
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 289 mm (16.5 x 16.5 x 11.4") |
| Weight | 1.8 kg (4 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | 278.4 N @ 120 km/h (63 lbf @ 75 mph) |
| Wind survivability | 120 km/h (75 mph) |
| Hardware | |
| Networking interface | (1) 10/100 MbE port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| System | |
| Gain | 18 dBi |
| Operating frequency | 2405-2475 MHz |
| Max. VSWR | 1.5:1 |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
